Innovation just for easier

Unique technology: using held pole avoiding sewing and
steel wire hide inside.Now skylight is easy to make.

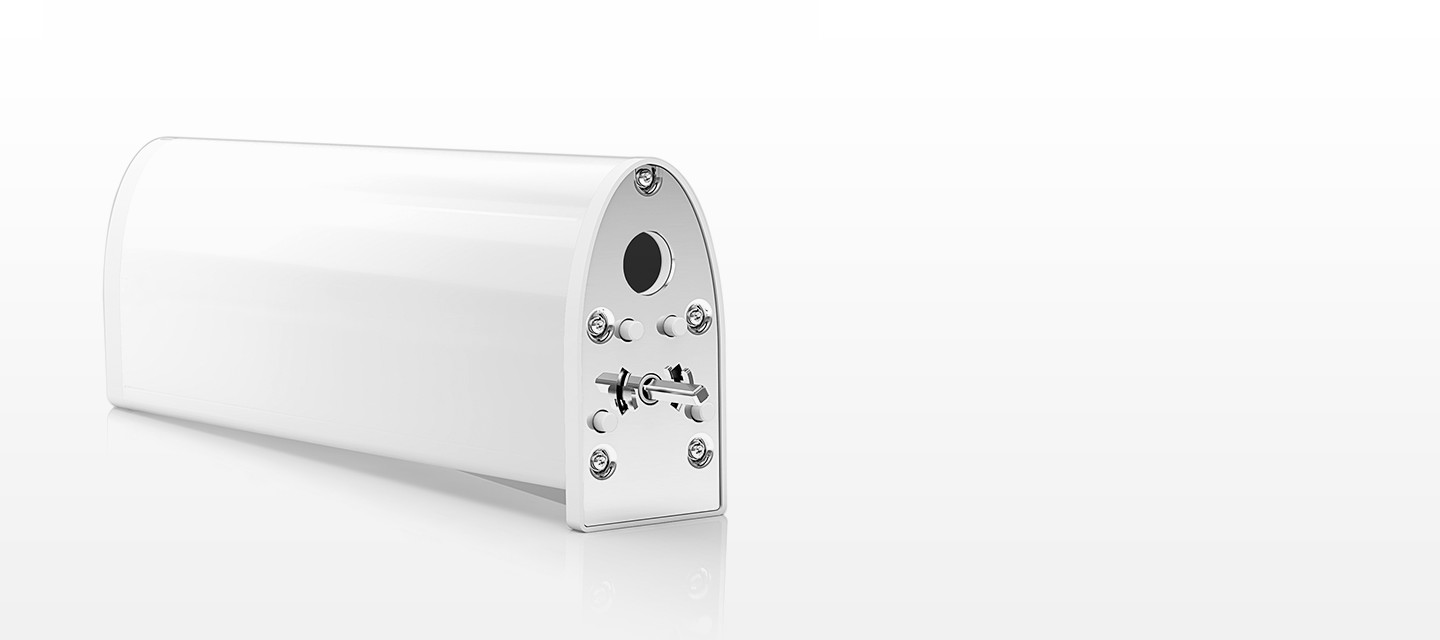

Powerful motor with nice cover.
With automatic stroke memory.
without manual adjustment
Just for easier.

Learn more about Skylight Shade Curtain Parameter >

Skylight Shade Curtain

  • N16-EL-2
  • N16-3A-2
  • Motor organization chart
  • Motor Video
Product Name interpretation

N16-EL-2

N: represent opening and closing curtains motor

16: Represent Shape Code

EL: Represent electronic limit + Receiver

2: Represent 2N torque

Type Size

Height: 288mm

Width: 108mm

Thickness: 54mm

Features

AC intelligent switching power supply wide voltage design

Integration of the overall shape design

Built-in wire design

Automatic electronic memory and limit function

Unique military-grade FSK868 FM

Wireless, dry contact control

Built-in receiver

Honeycomb skylight steel built-in design

Unique motor casing design

Free sewing fabric design

Easy Installation

Free setting stroke

Strong synchronization rate

Unique casing design

Full metal shaft design

Long working life, super-stable

Unique Taub rods and T-pulley design

Can use one motor drive one or a few skylight blind

Product Specifications

Torque 2N.m

Speed 20cm / s

Access voltage 200V-230V

Working voltage 200V-230V

Power 80W

Rated speed 110rpm

Straight track splice length 12m

Electric Weight 1.7kg

Product Name interpretation

N16-3A-2

N: represent opening and closing curtains motor

16: Represent Shape Code

3A: Represent electronic limit + Receiver + strong current

2: Represent 2N torque

Type Size

Height: 288mm

Width: 108mm

Thickness: 54mm

Features

AC intelligent switching power supply wide voltage design

Integration of the overall shape design

Built-in wire design

Automatic electronic memory and limit function

Unique military-grade FSK868 FM

Wireless, dry contact control

Built-in receiver + strong current

Honeycomb skylight steel built-in design

Unique motor casing design

Free sewing fabric design

Easy Installation

Free setting stroke

Strong synchronization rate

Unique casing design

Full metal shaft design

Long working life, super-stable

Unique Taub rods and T-pulley design

Can use one motor drive one or a few skylight blind

Product Specifications

Torque 2N.m

Speed 20cm / s

Access voltage 200V-230V

Working voltage 200V-230V

Power 80W

Rated speed 110rpm

Straight track splice length 12m

Electric Weight 1.7kg
