Meet all you need

As the representative of industrial essence,

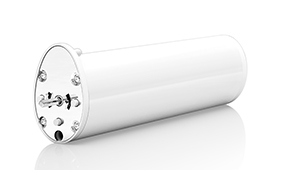

latest N08 ultra-quiet DC curtain motor with DC
quiet powerful motor inside,the 1st one has 9 ways
dry contact and fully compatible smart home port
485/232. Think you think and share you enjoy.

Learn more aboutN08 Curtain MotorParameter >

Look over N08 Curtain Motor Other models parameters

  • N08-3E-1
  • N08-3E-2
Explanation

N08-3E-1

N: represent opening and closing curtains motor

08: Represent Shape Code

3E: Represent electronic limit + Receiver + Power

1: Represent 1N torque

Model Size

Height: 300mm

Width: 65mm

Thickness: 50mm

Feature function

DC wide voltage design (110V-240V)

Automatic memory electronic limit function

Built-in receiver

Wireless Control

Unique military-grade anti-jamming FSK868 FM

Built-in control 485,232 port

Hand blackout

Recoil starter

Metal shaft design

Patented mechanical clutch function

Nine kinds of dry contact switch control

S type rope Ball combination

Long working life, super-stable

Product parameter

Torque 1N.m

Speed of 20cm / s

Access voltage 110V-240V

Working voltage 24V

Power 30W

Rated speed 110rpm

Current maximum 1.3A

Straight track splice length 12m

Motor Weight 1kg

Explanation

N08-3E-2

N: represent opening and closing curtains motor

08: Represent Shape Code

3E: Represent electronic limit + Receiver + Power

2: Represent 2N torque

Model Size

Height: 300mm

Width: 65mm

Thickness: 50mm

Feature function

DC wide voltage design (110V-240V)

Automatic memory electronic limit function

Built-in receiver

Wireless Control

Unique military-grade anti-jamming FSK868 FM

Built-in control 485,232 port

Hand blackout

Recoil starter

Metal shaft design

Patented mechanical clutch function

Nine kinds of dry contact switch control

S type rope Ball combination

Long working life, super-stable

Product parameter

Torque 2N.m

Speed of 20cm / s

Access voltage 110V-240V

Working voltage 24V

Power 30W

Rated speed 110rpm

Current maximum 1.3A

Straight track splice length 12m

Motor Weight 1.3kg
