French Technology
French Standard
采用梅花输出轴结构设计，性能卓越，运行静音
Built-in patented mechanical brake system, stronger
load-bearing capacity, no slipping when overloaded.

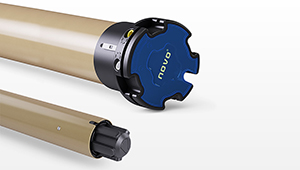

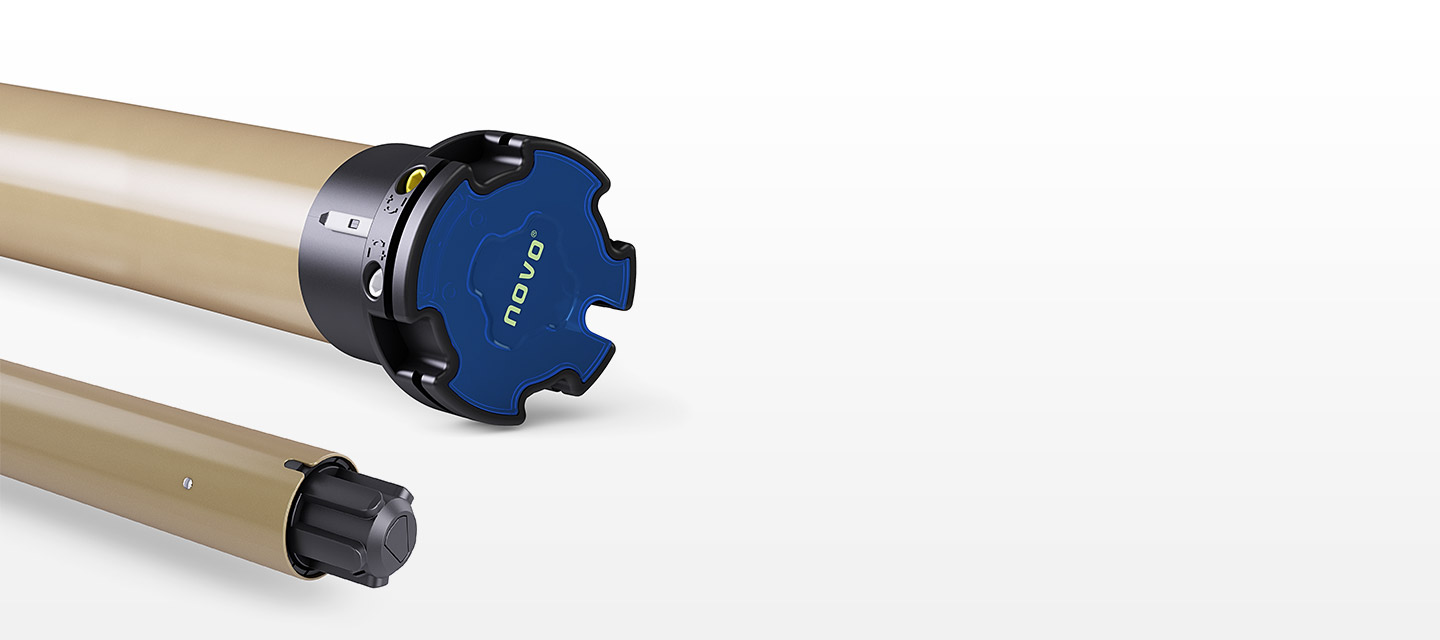

Look over 45mm Electronical Tubular Motor Other models parameters
- K45-EL-15-28
- K45-EL-20-18
- K45-EL-20-28
- K45-EL-30-18
- K45-EL-40-18
- K45-EL-50-12
Explanation
| K45-EL-15-28K: Tubular motor 45：External diameter 45mm EL：In-built receiver + Electronic limit 15：Mean 15N torque 28: 28 rpm | |
Model Size
| Length：559mm Diameter：45mm | |
Feature function
| French Technology and Standard Input Voltage: AC 220V/110V FSK Radio Control without Antenna Dot-move & light-adjust Quincuncial shaft Paired pipe: φ50 round, φ63 & φ85 groove, φ60 octagonal | |
Product parameter
| Rated torque 15 N*m Input voltage AC 220V/110V Rated speed 28 rpm Power 150W Noise index ≤45dB Protection class IP44 Rated Frequency (Hz) 50/60 |
Explanation
| K45-EL-20-18K: Tubular motor 45：External diameter 45mm EL：In-built receiver + Electronic limit 20：Mean 20N torque 18: 18 rpm | |
Model Size
| Length：559mm Diameter：45mm | |
Feature function
| French Technology and Standard Input Voltage: AC 220V/110V FSK Radio Control without Antenna Dot-move & light-adjust Quincuncial shaft Paired pipe: φ50 round, φ63 & φ85 groove, φ60 octagonal | |
Product parameter
| Rated torque 20 N*m Input voltage AC 220V/110V Rated speed 18 rpm Power 150W Noise index ≤45dB Protection class IP44 Rated Frequency (Hz) 50/60 Running Time in one direction: 4 min |
Explanation
| K45-EL-20-28K: Tubular motor 45：External diameter 45mm EL：In-built receiver + Electronic limit 20：Mean 20N torque 28: 28 rpm | |
Model Size
| Length：579mm Diameter：45mm | |
Feature function
| French Technology and Standard Input Voltage: AC 220V/110V FSK Radio Control without Antenna Dot-move & light-adjust Quincuncial shaft Paired pipe: φ50 round, φ63 & φ85 groove, φ60 octagonal | |
Product parameter
| Rated torque 20 N*m Input voltage AC 220V/110V Rated speed 28 rpm Power 180W Noise index ≤45dB Protection class IP44 Rated Frequency (Hz) 50/60 Running Time in one direction: 4 min |
Explanation
| K45-EL-30-18K: Tubular motor 45：External diameter 45mm EL：In-built receiver + Electronic limit 30：Mean 30N torque 18: 18 rpm | |
Model Size
| Length：579mm Diameter：45mm | |
Feature function
| French Technology and Standard Input Voltage: AC 220V/110V FSK Radio Control without Antenna Dot-move & light-adjust Quincuncial shaft Paired pipe: φ50 round, φ63 & φ85 groove, φ60 octagonal | |
Product parameter
| Rated torque 30 N*m Input voltage AC 220V/110V Rated speed 18 rpm Power 180W Noise index ≤45dB Protection class IP44 Rated Frequency (Hz) 50/60 Running Time in one direction: 4 min |
Explanation
| K45-EL-40-18K: Tubular motor 45：External diameter 45mm EL：In-built receiver + Electronic limit 40：Mean 40N torque 18: 18 rpm | |
Model Size
| Length：589mm Diameter：45mm | |
Feature function
| French Technology and Standard Silent Working Input Voltage: AC 220V/110V FSK Radio Control without Antenna Dot-move & light-adjust Quincuncial shaft Paired pipe: φ50 round, φ63 & φ85 groove, φ60 octagonal | |
Product parameter
| Rated torque 40 N*m Input voltage AC 220V/110V Rated speed 18 rpm Power 200W Noise index ≤25dB Protection class IP44 Rated Frequency (Hz) 50/60 Running Time in one direction: 4 min |
Explanation
| K45-EL-50-12K: Tubular motor 45：External diameter 45mm EL：In-built receiver + Electronic limit Mean 50N torque 12: 12 rpm | |
Model Size
| Length：589mm Diameter：45mm | |
Feature function
| French Technology and Standard Silent Working Input Voltage: AC 220V/110V FSK Radio Control without Antenna Dot-move & light-adjust Quincuncial shaft Paired pipe: φ50 round, φ63 & φ85 groove, φ60 octagonal | |
Product parameter
| Rated torque 50 N*m Input voltage AC 220V/110V Rated speed 12 rpm Power 200W Noise index ≤25dB Protection class IP44 Rated Frequency (Hz) 50/60 Running Time in one direction: 4 min |
