Light, smart and powerful enough.

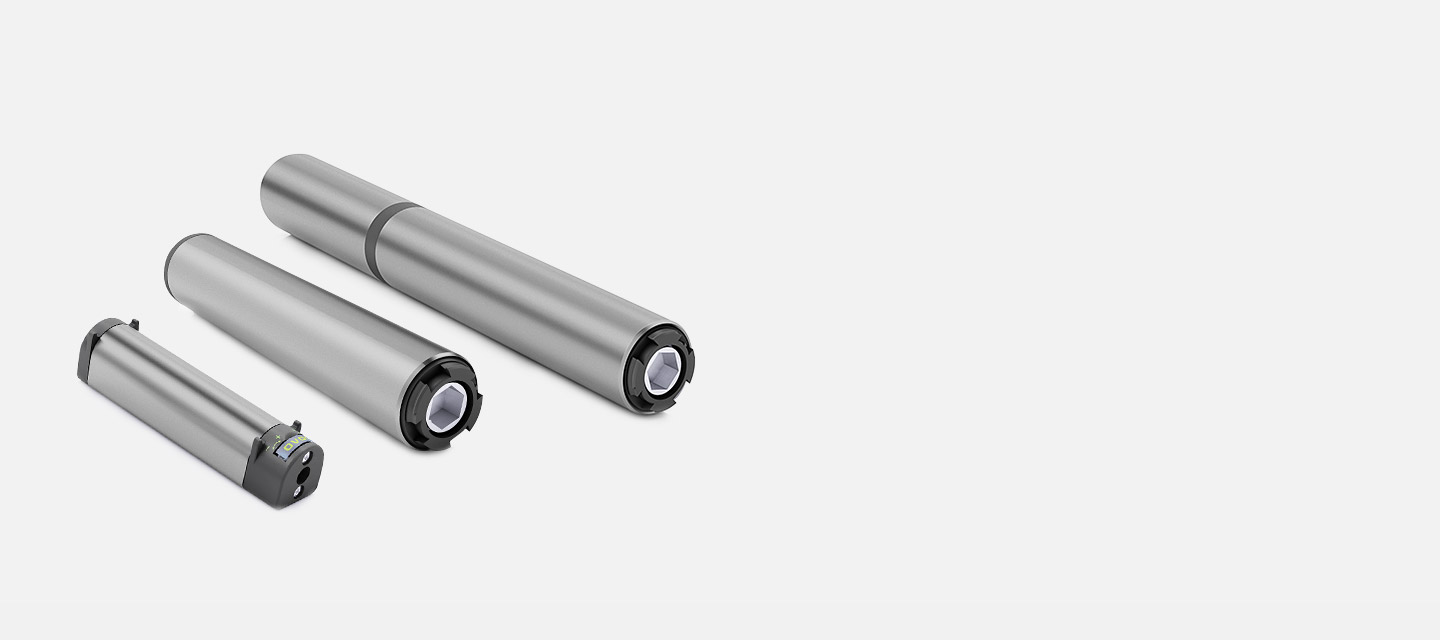

Renowned NOVO venetian blinds motors show technological
strength everywhere. With an integrated design process,
it is powerful with compact size.it is not just motor.
it is the top grade of industry standards.
This is just beginning.

Learn more aboutSynchronization venetian motorParameter >

Look over Synchronization venetian motor Other models parameters

  • E24-NL-DY-1.2
  • E24-NL-SY-1
Explanation

E24-NL-DY-1.2

E: Represent louver motor

24: Represent Dimensions diameter 24mm

NL: Represent no localizer

SY: Represent double shaft and synchronization

1.2: Represent 1.2N torque

Model Size

Height: 198mm

Width: 24mm

Thickness: 25mm

Feature function

DC voltage

Uniaxial synchronous operation, the vertical synchronous lifting level

overall design, imported materials

High Power

Low failure rate

Built-in automatic brake function, the stop function when meet resistance

Set with precision mechanical stoppers

outbuilt receivers, multiple receiving mode, compatible with smart home system

easy to instal, integrated products

Long working life

change direction function

Jog, continuous function

Small instal space

Product parameter

Torque 1.0N.m

working voltage 24V

speed 32rpm

Noise index ≤45dB

Frequency of use ≥10000

Explanation

E24-NL-SY-1

E: Represent louver motor

24: Represent Dimensions diameter 24mm

NL: Represent no localizer

SY: Represent single shaft and synchronization

1: Represent 1N torque

Model Size

Height: 135mm

Width: 24mm

Thickness: 25mm

Feature function

DC voltage

Uniaxial synchronous operation, the vertical synchronous lifting level

overall design, imported materials

High Power

Low failure rate

Built-in automatic brake function, the stop function when meet resistance

Set with precision mechanical stoppers

outbuilt receivers, multiple receiving mode, compatible with smart home system

easy to instal, integrated products

Long working life

change direction function

Jog, continuous function

Small instal space

Product parameter

Torque 1.0N.m

working voltage 24V

speed 32rpm

Noise index ≤45dB

Frequency of use ≥10000
