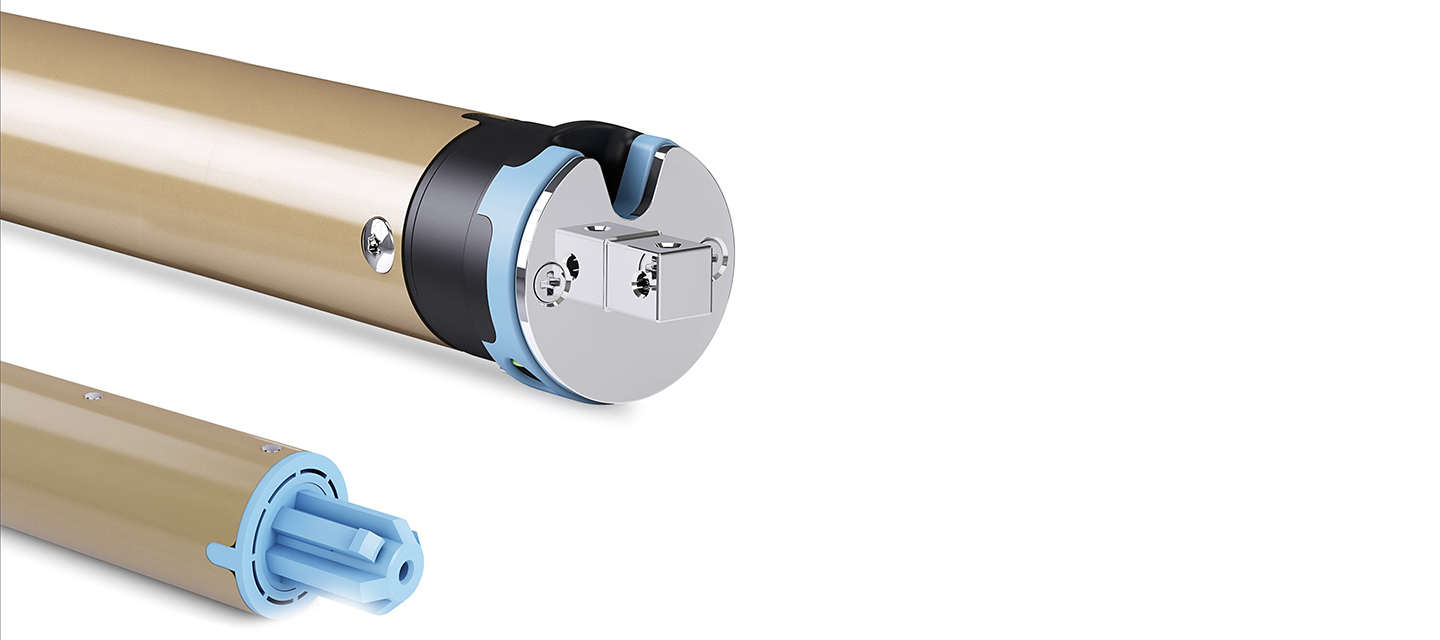

Silent Tubular Motor

Silent Working
No Noise when motor starts and stops
Quincuncial shaft

Learn more about35mm Silent Tubular MotorParameter >

Look over 35mm Silent Tubular Motor Other models parameters

  • K35-EL-6-28
  • K35-EL-10-16
  • K35-TP-6-28
  • K35-TP-10-16
  • K35-EL-10-16-IB
Explanation

K35-EL-6-28

K: Tubular motor

35:External diameter 35mm

EL:In-built receiver + Electronic limit

6:Torque 6N*m

28: 28 rpm

Model Size

Length:515mm

Diameter:35mm

Feature function

28 DB Silent Working

No brake noise when start and stop

Input Voltage: AC 220V/110V

FSK Radio Control without Antenna

Dot-move & light-adjust

Quincuncial shaft

Paired pipe: φ40 round, φ47, φ50 and φ55 groove, φ40 octagonal

Product parameter

Rated torque 6 N*m

Input voltage AC 220V/110V

Rated speed 28 rpm

Power 115W

Noise index ≤28DB

Protection class IP44

Rated Frequency (Hz) 50/60

Running Time in one direction: 4 min

Explanation

K35-EL-10-16

K: Tubular motor

35:External diameter 35mm

EL:In-built receiver + Electronic limit

10:Torque 10N*m

16: 16 rpm

Model Size

Length:515mm

Diameter:35mm

Feature function

28 DB Silent Working

No brake noise when start and stop

Input Voltage: AC 220V/110V

FSK Radio Control without Antenna

Dot-move & light-adjust

Quincuncial shaft

Paired pipe: φ40 round, φ47, φ50 and φ55 groove, φ40 octagonal

Product parameter

Rated torque 10 N*m

Input voltage AC 220V/110V

Rated speed 16 rpm

Power 115W

Noise index ≤28DB

Protection class IP44

Rated Frequency (Hz) 50/60

Running Time in one direction: 4 min

Explanation

K35-TP-6-28

K: Tubular motor

35:External diameter 35mm

TP:No receiver + Mechanical limit

6:Torque 6N*m

28: 28 rpm

Model Size

Length:515mm

Diameter:35mm

Feature function

28 dB Silent Working

No brake noise when start and stop

Input Voltage: AC 220V/110V

Quincuncial shaft

Paired pipe: φ40 octagonal, φ40 round, φ47, φ50 and φ55 groove

Product parameter

Rated torque 6 N*m

Input voltage AC 220V/110V

Rated speed 28 rpm

Power 115W

Noise index ≤28DB

Protection class IP44

Rated Frequency (Hz) 50/60

Explanation

K35-TP-10-16

K: Tubular motor

35:External diameter 35mm

TP:No receiver + Mechanical limit

10:Torque 10N*m

16: 16 rpm

Model Size

Length:515mm

Diameter:35mm

Feature function

28 dB Silent Working

No brake noise when start and stop

Input Voltage: AC 220V/110V

Quincuncial shaft

Paired pipe: φ40 octagonal, φ40 round, φ47, φ50 and φ55 groove

Product parameter

Rated torque 10 N*m

Input voltage AC 220V/110V

Rated speed 16 rpm

Power 115W

Noise index ≤28DB

Protection class IP44

Rated Frequency (Hz) 50/60

Explanation

K35-EL-10-16-IB

K: Tubular motor

35:External diameter 35mm

EL:In-built receiver + Electronic limit

10:Torque 10N*m

16: 16 rpm

IB: Dry Contact Control

Model Size

Length:515mm

Diameter:35mm

Feature function

28 DB Silent Working

No brake noise when start and stop

Input Voltage: AC 220V/110V

FSK Radio Control without Antenna

Dry Contact Control for Smart Home

Dot-move & light-adjust

Quincuncial shaft

Paired pipe: φ40 round, φ47, φ50 and φ55 groove, φ40 octagonal

Product parameter

Rated torque 10 N*m

Input voltage AC 220V/110V

Rated speed 16 rpm

Power 115W

Noise index ≤28DB

Protection class IP44

Rated Frequency (Hz) 50/60

Running Time in one direction: 4 min
