Beauty in touch

Integration body with built-in antenna. Never slip
with special plum shaft. Multi-chip control technology.
Fully compatible intelligent home control system.
Easier but not simple. Infinite innovation overflows everywhere.

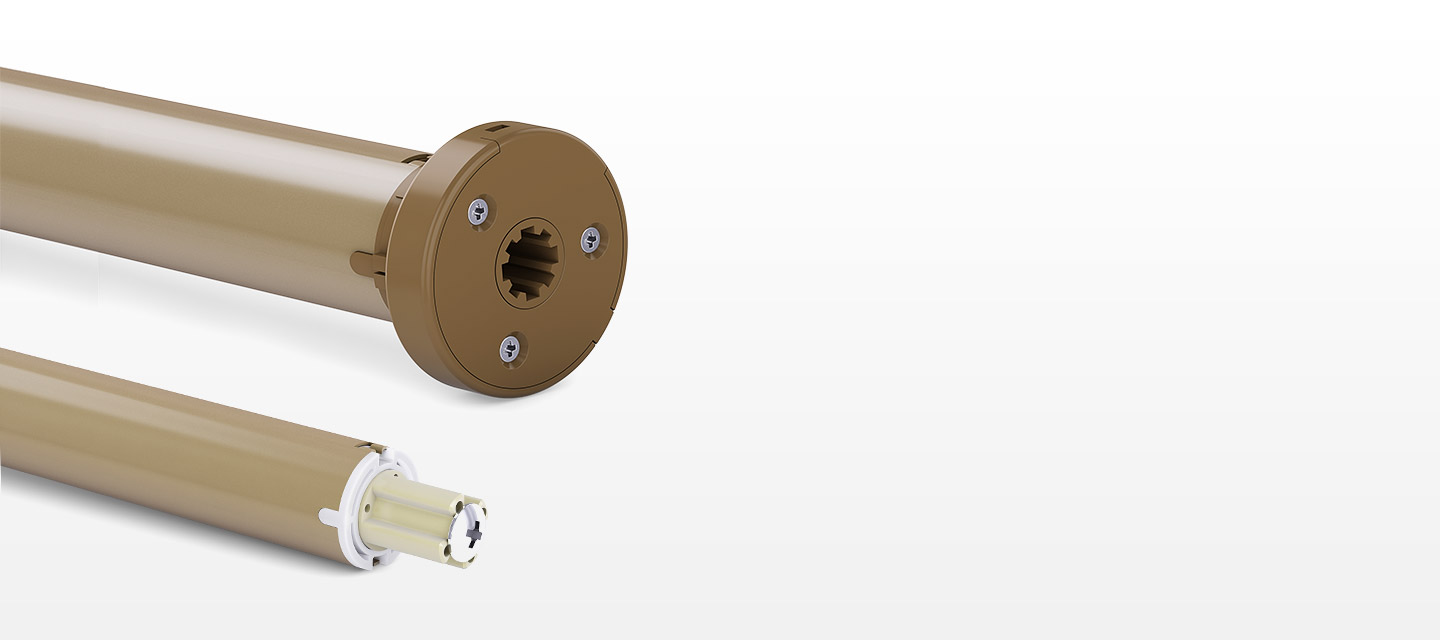

Learn more about25mm tubular motorParameter >

Look over 25mm tubular motor Other models parameters

  • K25-3E-1.2-26
  • K25-3E-0.7-26
  • K25-4E-1.2-26
Explanation

K25-3E-1.2-26

K: tubular mtor

25:external diameter 25mm

3E:in-bulit receiver and electronic localizer+ power supply

4E:in-bulit receiver and electronic localizer + battery + low-power

1.2:Torque 1.2N

26: 26 RPM

Model Size

Length:335mm

Diameter:25mm

Feature function

DC motor,accept higher input voltage

in-bulit receiver + transformer

smart and light structure

high power

Precise stroke control

Built-in antenna, Built-in power supply

Embedded radio control system

Change direction, inching, continuous moving

Integration body with highlight paint

stable automatic braking system

Automatic electronic memory function and electronic limit

Precision Dual low-noise gearbox

Unique military-grade FSK868 FM

Ultra-quiet operation, long working life

Never slip special plum shaft made with American DuPont nylon

Product parameter

Rated torque 1.2N.M

Input voltage AC90-220V

Rated speed 26rpm

Power 15w

Noise index ≤45dB

Protection class IP44

Explanation

K25-3E-0.7-26

K: tubular mtor

25:external diameter 25mm

3E:in-bulit receiver and electronic localizer+ power supply

4E:in-bulit receiver and electronic localizer + battery + low-power

0.7:Torque 0.7N

26: 26 RPM

Model Size

Length:335mm

Diameter:25mm

Feature function

DC motor,accept higher input voltage

in-bulit receiver + transformer

smart and light structure

high power

Precise stroke control

Built-in antenna, Built-in power supply

Embedded radio control system

Change direction, inching, continuous moving

Integration body with highlight paint

stable automatic braking system

Automatic electronic memory function and electronic limit

Precision Dual low-noise gearbox

Unique military-grade FSK868 FM

Ultra-quiet operation, long working life

Never slip special plum shaft made with American DuPont nylon

Product parameter

Rated torque 0.7N.m

Input voltage AC90-220V

Rated speed 26rpm

Power 9w

Noise index ≤45dB

Protection class IP44

Explanation

K25-4E-1.2-26

K: tubular mtor

25:external diameter 25mm

3E:in-bulit receiver and electronic localizer+ power supply

4E:in-bulit receiver and electronic localizer + battery + low-power

1.2:Torque 1.2N

26: 26 RPM

Model Size

Length:335mm

Diameter:25mm

Feature function

DC motor,accept higher input voltage

in-bulit receiver + transformer

smart and light structure

high power

Precise stroke control

built-in high-performance lithium battery module, a single charge can be used

3-13 months,can be equipped with solar panels or battery stick

Embedded radio control system

Change direction, inching, continuous moving

Integration body with highlight paint

stable automatic braking system

Automatic electronic memory function and electronic limit

Precision Dual low-noise gearbox

Unique military-grade FSK868 FM

Ultra-quiet operation, long working life

Never slip special plum shaft made with American DuPont nylon

Product parameter

Rated torque 1.2N.m

Input voltage DC8V

Rated speed 26rpm

Power 15w

Noise index ≤45dB

Protection class IP44
